Automatically extracting chemical structures from documents is essential for the large-scale analysis of the literature in chemistry. Automatic pipelines have been developed to recognize molecules represented either in figures or in text independently. However, methods for recognizing chemical structures from multimodal descriptions (Markush structures) lag behind in precision and cannot be used for automatic large-scale processing.
In this work, we present MarkushGrapher-2, an end-to-end approach for the multimodal recognition of chemical structures in documents. First, our method employs a dedicated OCR model to extract text from chemical images. Second, the text, image, and layout information are jointly encoded through a Vision-Text-Layout encoder and an Optical Chemical Structure Recognition vision encoder. Finally, the resulting encodings are effectively fused through a two-stage training strategy and used to auto-regressively generate a representation of the Markush structure.
To address the lack of training data, we introduce an automatic pipeline for constructing a large-scale dataset of real-world Markush structures. In addition, we present IP5-M, a large manually-annotated benchmark of real-world Markush structures, designed to advance research on this challenging task. Extensive experiments show that our approach substantially outperforms state-of-the-art models in multimodal Markush structure recognition, while maintaining strong performance in molecule structure recognition. Code, models, and datasets will be released publicly.

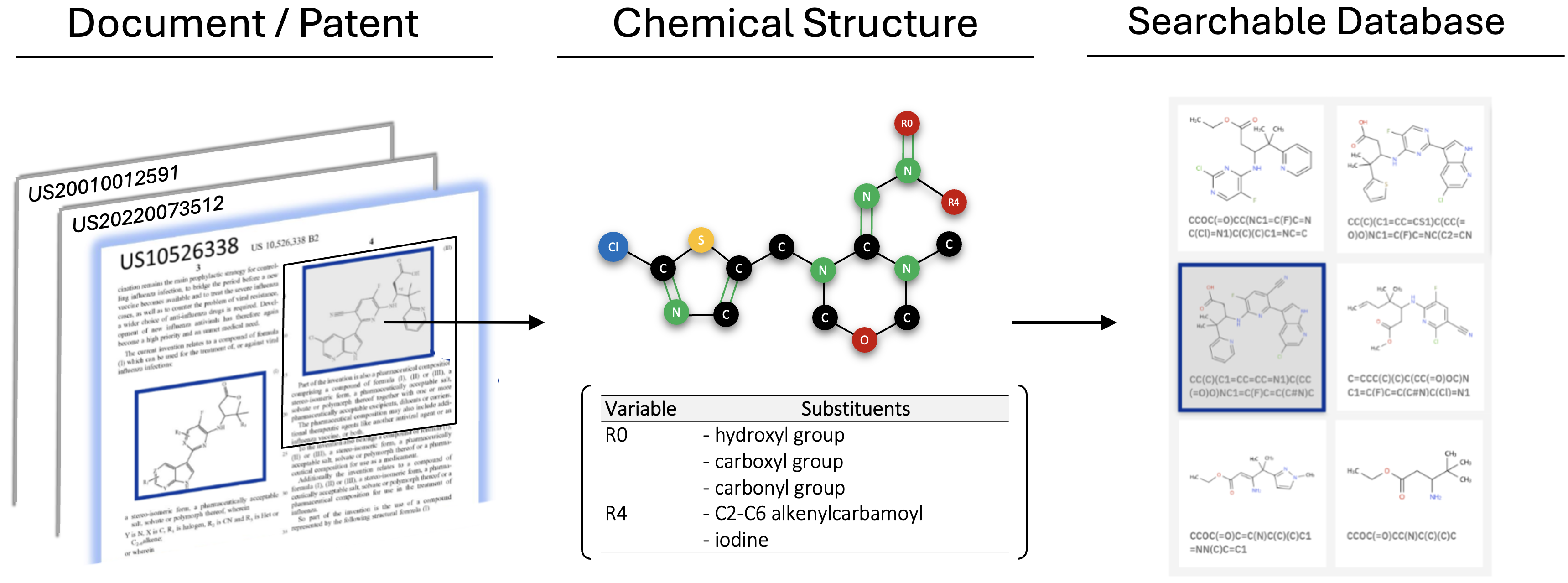

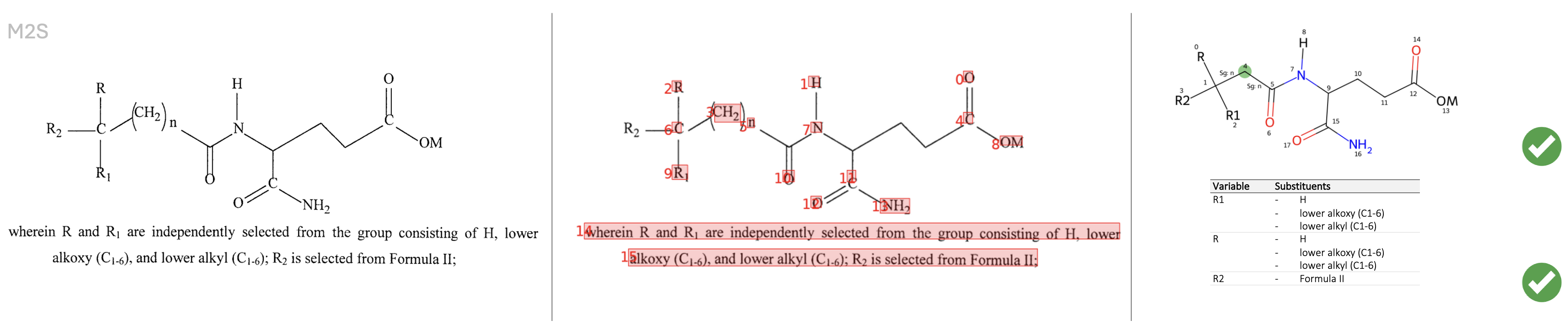

The automatic extraction of chemical structures from (document) images is a significant challenge that is highly useful for large-scale patent analysis, prior-art searches, and ultimately accelerating Research & Development of novel chemical compounds. With MarkushGrapher-2, we introduce a model for automatic end-to-end parsing of complex molecular and Markush structures from images into a graph-based string representation, namely (extended) SMILES. These (extended) SMILES can be used to populate large-scale chemical databases, enabling efficient search and analysis of chemical structures in the literature.

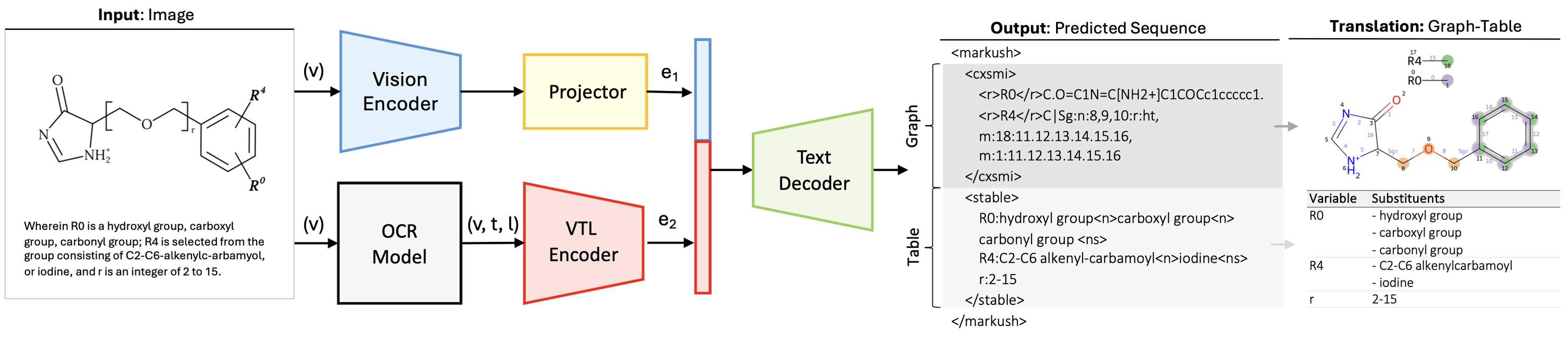

MarkushGrapher-2 employs two complementary encoding pipelines. In the first pipeline, the input image is processed by a vision encoder (Swin-B ViT, pretrained for OCSR) followed by an MLP projector. In the second pipeline, the image is passed through ChemicalOCR to extract textual content and bounding boxes, which are fed into a Vision-Text-Layout (VTL) encoder together with the original image. The combined representation is passed to a text decoder to generate a sequential description of the Markush structure and its substituents in tabular form.
ChemicalOCR substantially outperforms existing OCR models (PaddleOCR v5, EasyOCR) on chemical image text recognition.
| Model | M2S (103) | USPTO-M (74) | IP5-M (1000) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | R | F1 | A | P | R | F1 | A | P | R | F1 | A | |
| PaddleOCR v5 | 8.9 | 6.8 | 7.7 | 0.0 | 2.3 | 1.1 | 1.2 | 0.0 | 2.2 | 1.7 | 1.9 | 0.6 |
| EasyOCR | 9.8 | 10.7 | 10.2 | 0.0 | 24.8 | 14.2 | 18.0 | 0.0 | 23.5 | 15.2 | 18.4 | 2.7 |
| ChemicalOCR (Ours) | 86.9 | 87.4 | 87.2 | 32.0 | 93.5 | 92.6 | 93.0 | 63.5 | 85.6 | 87.4 | 86.5 | 69.5 |
MarkushGrapher-2 substantially outperforms state-of-the-art models on Markush structure recognition across all benchmarks.
| Method | M2S (103) | USPTO-M (74) | WildMol-M (10k) | IP5-M (1000) | |||
|---|---|---|---|---|---|---|---|
| CXSMILES | Table | Markush | CXSMILES | CXSMILES | CXSMILES | ||
| A | A | F1 | A | A | A | A | |
| Image only | |||||||
| MolParser-Base | 39 | -- | -- | -- | 30 | 38.1 | 47.7 |
| MolScribe | 21 | -- | -- | -- | 7 | 28.1 | 22.3 |
| Multimodal | |||||||
| GPT-5 | 3 | 8 | 24 | 0 | -- | -- | -- |
| DeepSeek-OCR | 0 | -- | -- | -- | 0 | 1.9 | 0.0 |
| MarkushGrapher-1 | 38 | 29 | 65 | 10 | 32 | -- | -- |
| MarkushGrapher-2 (Ours) | 56 | 22 | 65 | 13 | 55 | 48.0 | 53.7 |
MarkushGrapher-2 maintains competitive performance on standard molecular structure recognition (SMILES prediction), achieving state-of-the-art results on UOB.
| Method | WildMol (10k) | JPO (450) | UOB (5740) | USPTO (5719) |
|---|---|---|---|---|
| Image only | ||||
| MolParser-Base | 76.9 | 78.9 | 91.8 | 93.0 |
| MolScribe | 66.4 | 76.2 | 87.4 | 93.1 |
| DECIMER 2.7 | 56.0 | 64.0 | 88.3 | 59.9 |
| MolGrapher | 45.5 | 67.5 | 94.9 | 91.5 |
| Multimodal | ||||
| GPT-5 | -- | 19.2 | -- | -- |
| DeepSeek-OCR | 25.8 | 31.6 | 78.7 | 36.9 |
| MarkushGrapher-2 (Ours) | 68.4 | 71.0 | 96.6 | 89.8 |
The OCR predictions substantially improve MarkushGrapher-2's prediction accuracy, demonstrating the importance of text and layout modalities.
| Method | M2S | USPTO-M | IP5-M | |||
|---|---|---|---|---|---|---|
| A | AInChIKey | A | AInChIKey | A | AInChIKey | |
| Without OCR | 4 | 39 | 3 | 51 | 15.4 | 51.3 |
| With OCR | 56 | 80 | 55 | 69 | 53.7 | 73.3 |

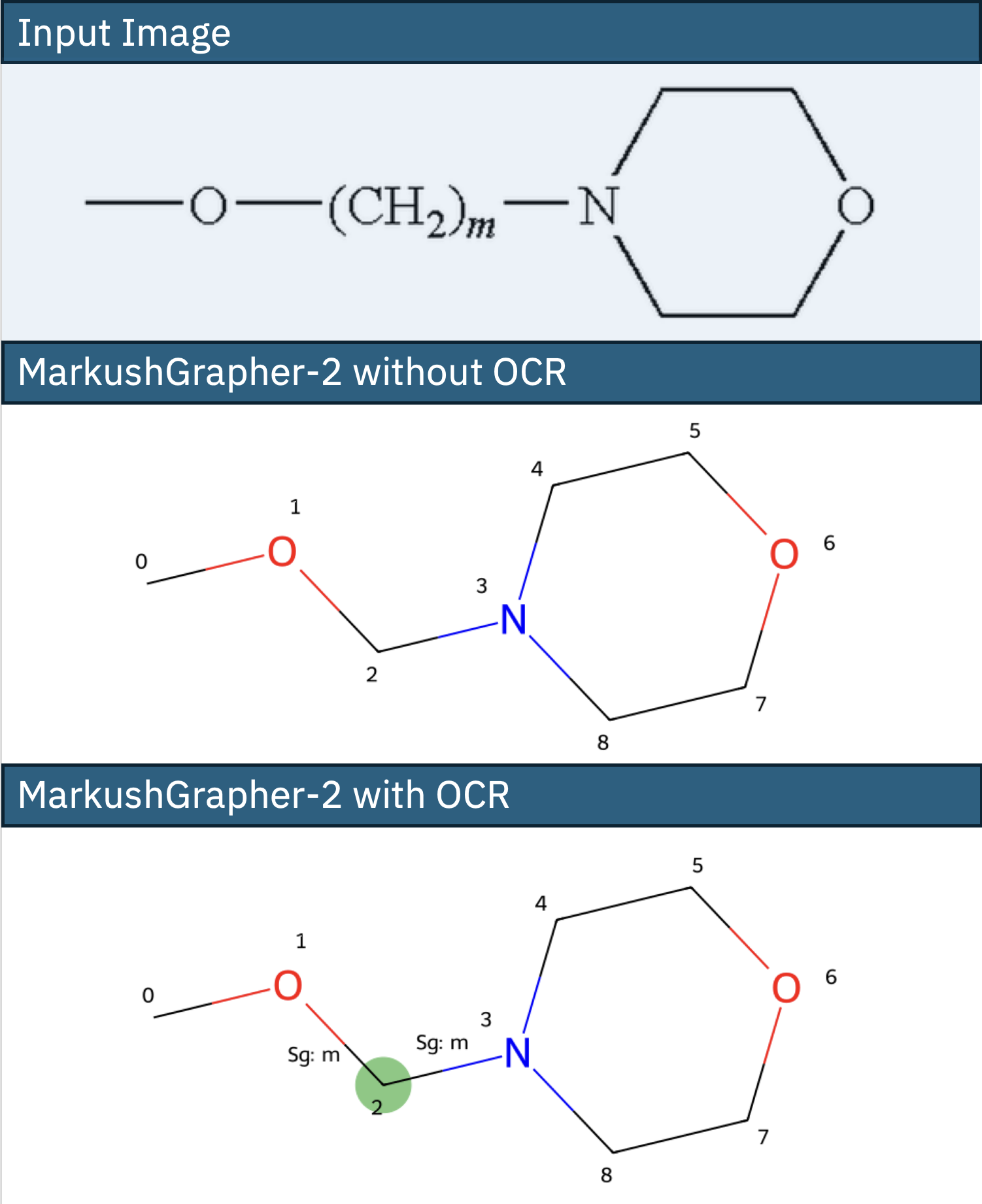

Effect of OCR Predictions: Comparison of MarkushGrapher-2 predictions with and without OCR input. The green circle indicates prediction of a frequency variation indicator (i.e., repeating Sg groups).
Two-phase training improves the model's ability to encode Markush features while preserving performance on standard molecular recognition.
| Method | M2S | JPO | ||
|---|---|---|---|---|
| A | AInChIKey | A | AInChIKey | |
| Fusion only | 44 | 53 | 53.0 | 53.0 |
| Adaptation + Fusion | 50 | 68 | 61.5 | 61.5 |
@inproceedings{strohmeyer2026markushgrapher2,
title = {MarkushGrapher-2: End-to-end Multimodal Recognition of Chemical Structures},
author = {Strohmeyer, Tim and Morin, Lucas and Meijer, Gerhard Ingmar and Weber, Valery and Nassar, Ahmed and Staar, Peter W. J.},
booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
year = {2026}
}
